Home Sand Blasting Machine

Review specifications, applications, and enquiry support for this machine.

Industrial Grade In Stock 1-Year Warranty

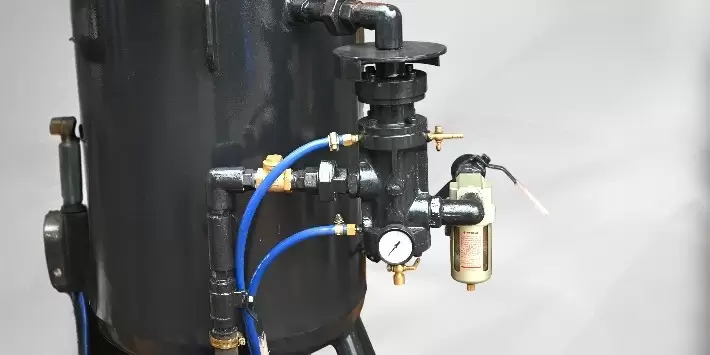

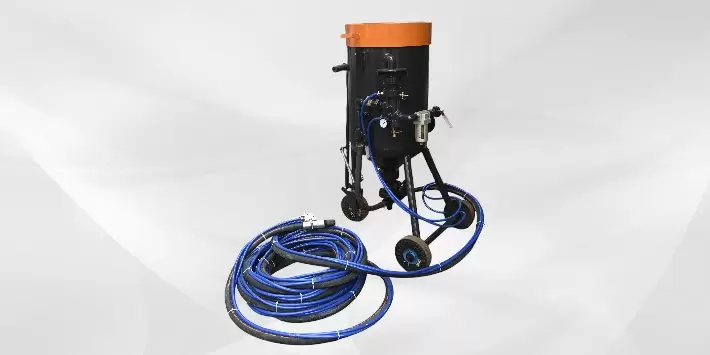

Sand Blasting Machine

ModelSand Blasting Machine
SKUSB-D30CFE2E
Response< 24 Hours
DispatchGlobal Support
4.4 / 5 Buyer Rated (167 reviews)

Sand blasting machine is a course of surface planning wherein free particles are eliminated from any surface. Those free particles can be scale, erosion, paint, or any burrs, and so on Surface planning is done to paint and warm shower weapon covering on the part to expand its life.

30-45%Faster Prep
25%+Adhesion Gain
20-35%Less Rework
AVAILABLE SIZE
300kg 500kg 800kg 1000kg
NOZZLE SIZE
6mm 8mm 10mm
Price range: Request best quote for your configuration Commercial quote is shared after requirement matching.

Sand Blasting Machine Video

Watch Machine in Action

See real industrial performance

Technical Specifications

Material Mild steel or stainless steel
Power 10 HP
Nozzle Size 5-10 mm
Compressed Air 80 psi
Tank Capacity 50 kg-1000 kg
Cleaning Rate 4–23 sq m/hr
Hose Length 5-10 m
Voltage 220-240 V, 50 Hz

Key Components

Sand Blasting Nozzle

Sand Blasting Nozzle

Core Part

A sand blasting nozzle is a critical part of the sand blasting system that directs the flow of abrasive media and compressed air onto the work surface. The nozzle's shape (straight or venturi) and orifice size significantly affect efficiency, surface finish, and coverage area. Proper nozzle selection ensures optimal cleaning, cutting, or surface preparation results. A sand blasting nozzle is used in industrial, automotive, and construction applications.

What Does a Sandblasting Nozzle Do?

  • Accelerates the mixture of air and abrasive media.
  • Directs the blast toward the target surface.
  • Controls the shape, force, and spread of the blasting pattern.
Verified For This Model
Air Compressor for Sand Blasting

Air Compressor for Sand Blasting

Core Part

An air compressor for sand blasting machine is equipment that provides the compressed air needed to propel abrasive media (like sand, steel grit, or glass beads) through the blasting nozzle at high speed to clean, smooth, or shape surfaces.

In sandblasting, compressed air features:

  • Pressure Rating: Minimum 100-150 PSI.
  • Air Flow: At least 90-250 CFM, depending on nozzle size and blasting requirements.
  • Tank Capacity: Larger tanks (200-500 liters) allow continuous operation.
  • Cooling System: Air or water cooled for sustained operation.
  • Durability: Built with heavy-duty components to handle abrasive environments.
Verified For This Model
Sand Blasting Helmet

Sand Blasting Helmet

Core Part
Size 29cm*26.5cm
Packing Type Box
Size 6 Mtr
Helmet Material High Quality Plastic
Weight Approx. 1.5 – 2.5 kg
Viewing Area 4" x 9"
Air Flow Rate 6-15 CFM
Noise Reduction Rating Upto 24-30 dB
Application Sand Blasting Work
Verified For This Model
Pinch Valve

Pinch Valve

Core Part
Valve Type Manual, Pneumatic, Hydraulic
Size Range ½″-24″ (12.5-600 mm)
Body Material Cast aluminum, mild or stainless steel
Sleeve Material Natural rubber, EPDM, Neoprene, nitrile, polyurethane, Viton, Hypalon
Pressure 60-87 psi
Temperature Range Approximately -10 °C-80 °C (14 °F-176 °F)
Actuation Pneumatic
Verified For This Model
Sand Blasting Hose

Sand Blasting Hose

Core Part
Color Black
Working Pressure 15 bar
Inner Diameter 20 - 38 mm
Outer Diameter 38 - 58.50 mm
Usage
Sand Blasting

sand blasting hose is a durable, abrasion-resistant hose designed to transport high-velocity abrasive materials like sand, grit, or steel shot from the blasting pot to the nozzle. Built with thick, anti-static rubber and reinforced layers, it can withstand extreme pressure and harsh working conditions.

Verified For This Model
Deadman Handle

Deadman Handle

Core Part
Grade Semi-Automatic
Material Aluminium
Handle Type Pneumatic, Electric, Mechanical Control
Body Size Customizable

deadman handle for sand blasting is safety equipment that ensures the blasting process only operates when the operator maintains active control. It’s a spring-loaded, hand-operated switch that instantly shuts off abrasive flow and air pressure when released. Generally used in remote-control systems, the deadman handle enhances job site safety, especially in blasting environments.

Verified For This Model
Remote Control Valve

Remote Control Valve

Core Part
Body Material Lightweight aluminium
Valve Types Pneumatic, electric control
Sizes Available ¾″ (19 mm), 1¼″ (32 mm), 1½″ (38 mm)
Weight Range 2.7 kg (RM‑1)-4.4 kg (RM‑2)

remote control valve is equipment in a sand blasting machine, enabling the operator to start or stop the sand blasting process from a distance. Connected to the deadman handle, it uses pneumatic signals to control the main air supply and abrasive flow. This valve enhances safety by instantly shutting off blasting or releasing the handle.

Verified For This Model
Sand Blasting Stencils

Sand Blasting Stencils

Core Part
Material Rubber, Vinyl, or Polyurethane
Thickness 0.5-2 mm
Stencil Width  6",12",18", or custom
Temperature Resistance Up to 80°C
Color Black, blue, white, gray

Sand blasting stencils are masking materials used to create precise designs on surfaces during abrasive blasting machine operation. Suitable for stone, glass, metal, and wood, they ensure sharp detailing. Used in signage, memorials, and decorations, stencils enhance creativity and control during blasting.

Verified For This Model
Dust Collector

Dust Collector

Core Part
Type Cartridge, Baghouse, Cyclone
Airflow Capacity 500-10,000 CFM
Number of Filters 2-48 cartridges
Power Supply 230 V
Motor Power 1-15 HP
Material Mild/Stainless steel
Noise Level <85 dB

Dust collectors remove airborne dust and abrasive media from sand blasting areas, protecting health and equipment. They often use cartridge or bag filters and can be integrated with or stand alone from sand blasting cabinets.

Verified For This Model
Sand Blasting Nozzle Holder

Sand Blasting Nozzle Holder

Core Part
Material Aluminum, Nylon, Brass, or Plastic
Thread Type 50 mm, 1¼", or 2"
Inner Diameter 32mm, 50mm
Outer Diameter 1", 1.5", or 2"
Length 3" to 6"

Sand blasting nozzle holder connects nozzle to blast hose, ensuring safe & stable operation under high pressure. Made from wear-resistant materials like nylon, aluminum, & brass, it defies abrasive flow & tough conditions. Featuring threaded or locking systems for distinct nozzle types. This holder keeps even abrasive flow, reduces hose damage, & improves blasting precision.

Verified For This Model
Suction Blasting Y Gun

Suction Blasting Y Gun

Core Part
Material Cast Iron
Air Pressure 30-50 psi
Nozzle Size Up to 5 mm
Nozzle Material Brass, Tungsten & Boral Carbide

A Suction blasting Y gun is handheld equipment used in sand blasting machines. It creates a vacuum that draws abrasive media from a hopper through its Y shape and propels it onto surfaces with compressed air. Lightweight and easy to control, it’s ideal for precise cleaning, rust removal, and paint stripping on delicate or small items. Made from wear-resistant materials, it offers durability and smooth media flow. Commonly used in automotive, glass etching, and small part finishing.

Verified For This Model
Boron Carbide Sandblasting Nozzle

Boron Carbide Sandblasting Nozzle

Core Part
Material Boron Carbide
Hardness 9.5 Mohs
Inner Diameter (ID) 4,6,8,10,12 mm
Outer Diameter (OD) 25-50 mm
Length 80-150 mm
Operating Pressure 100-175 psi

Boron carbide sandblasting nozzle is a high-grade nozzle known for its extreme hardness, lightweight, & exceptional wear resistance. Highly resistant to corrosion, they handle aggressive media like aluminum oxide, silicon carbide, or steel grit. Due to their long lifespan and consistent performance, boron carbide nozzles are popular in heavy-duty & precision sandblasting.

Verified For This Model

Applications

  • Automotive: stripping paint, rust, and corrosion from vehicle bodies prior to repainting.
  • Construction: cleaning steel structures, bridges, facades, and concrete surfaces.
  • Shipbuilding: removing old coatings and marine growth from vessel hulls.
  • Metalworking & Fabrication: prepping weld joints, removing scale, and texturizing surfaces.
  • Stone Engraving & Monuments: carving inscriptions using glass bead or soda blasting techniques.

A sand blasting machine is a type of equipment for surface preparation wherein free particles are eliminated from any surface. Those free particles can be scale, erosion, paint, or any burrs, and so on. Surface preparation is done to paint and warm the shower weapon covering on the part to extend its life. Sand blasting machine is very valuable for any surface, since that doesn't eliminate the free particles, then the strength of any paint or warm splash covering is extremely low on that surface of parts.

In pneumatic sand blasting machine price in India, packed air is utilized for the blasting system. In this sort of machine blower of the required CFM is utilized for appropriate working. With the high tension, blasting media strikes on the part surface, and the blasting system is a finished air breather.

The essential standard of a sand blasting machine is to toss a high-speed stream of air and sand on the necessary surface and set it up for additional interaction. Blasting essentially implies abrasive media on the necessary surface at high speed.

Convenient Sand Blasting Machine

We are a convenient sand blasting machine manufacturer in India. The compact sand blasting machine is utilized from the outside to clean the part. Sand blasting machines are available in numerous standard sizes, and the thing that matters is the capacity limit, spout size, and cleaning rate. For a legitimate cleaning rate and constant working of the blasting machine, a blower of the required CFM is utilized.

This sort of portable sand blasting machine is not difficult to move, according to its suitability. While utilizing the compact sand blasting cabinet, it is important to utilize administrative wellbeing wear for inconvenience-free blasting and to shield the administrator from risks. The administrator needs to wear a security suite, protective cap, and so forth.

The portable sand blasting machine is utilized as a finishing cycle that has been effectively used on glass, metal, plastic, earthenware, and stone. The compact sandblasting machines are protected, high-efficiency frameworks intended for use with a wide range of grating media. The capacity of a versatile sand blasting machine incorporates descaling, peening, Deburring, Deflashing, cleaning, cleaning, and stress assuaging. principle applications are in the fields of boats, foundations, and various vehicles.

  • Portable Sand Blasting Machine: Light, mobile units with pressure pots (50â300â¯kg capacity), ideal for onsite cleaning. Require an air compressor (3-10â¯HP) and use a deadman handle, pinch valve, and a venturi nozzle. Common nozzle orifice sizes: 5â8â¯mm.
  • Vacuum Sand Blasting Machine: Ideal for dustâÂÂfree operation. Captures abrasive and dust back into the system using suction, reducing airborne contaminants.

Close Sand Blasting Machine

The sand blasting machine is additionally called a sand blasting unit. It keeps the climate from residue and administrators' wellbeing, moreover. The sand blasting equipment comprises a rough reusing framework, likewise that we can reuse the pre-owned grating. So later it will be financial. The cabinet additionally comprises a dust collector system thermal spray gun. The administrator can do sand blasting from outside the cabinet. Sand blasting cabinets are available in numerous standard sizes and furthermore in modified sizes. Pressure blasting cabinet, pull blasting cabinet, and the wet blasting machine are utilized according to the application.

  • Cabinet Sand Blasting Machine: Sand blasting cabinet enclosed booths equipped with gloves, viewing windows, and dust collectors. Excellent for fine or small parts, paint stripping, and smooth finishing.
  • Automatic Sand Blasting Machine: Equipment with rotating platforms and servoâÂÂcontrolled nozzles. Allows automated blasting for small mass-produced parts. Pressure is controlled via CNC.

The primary capacity of sand blasting machine

  • De-scaling
  • Peening
  • De-burring
  • De-glimmering
  • Cleaning
  • Cleaning
  • Stress soothing

Sand Blasting Machine Price in India

Spray Blast offers competitive sand blasting machine price in India, ensuring top-quality equipment with fast delivery. We manufacture and supply a wide range of blasting solutions, including sand blasting rooms, sand blasting cabinets, portable blasting machines, metalizing wire, garnet sand, aluminum oxide, and more at cost-effective rates. Our product lineup also includes shot blasting machines, granite engraving machines, laser rust cleaning machines, thermal spray guns, shot blasting cabinets, and other related equipment, where we deliver durability and reliability at the best prices.

Request A Custom Quote For Sand Blasting Machine

Share your application, production target, and material details. Our engineering team will recommend the right configuration with timeline and pricing.

Frequently Asked Questions

A sand blasting machine is used for cleaning, smoothing, or shaping surfaces by propelling abrasive materials at high speed. It removes rust, paint, scale, and contaminants, preparing metal, concrete, or glass for coating or finishing.

Key components include a blast pot, air compressor, blasting gun/nozzle, hose, dust collector, moisture separator, pinch valve, and protective safety gear.

Common abrasives include silica sand, aluminum oxide, steel grit, glass beads, garnet, and plastic media. The choice depends on the surface material and desired finish.

Yes, with precision nozzles and stencils, sand blasting can engrave designs or text on granite, glass, or metal surfaces.

Operators must wear a sand blasting helmet, gloves, a protective suit, and use proper ventilation to avoid exposure to dust and abrasive rebound.

Dust is controlled during sand blasting using a dust collector, which captures airborne abrasive particles and debris generated during blasting. Most machines are equipped with cyclone separators, filters, or cartridge-based collectors that separate dust from clean air.
