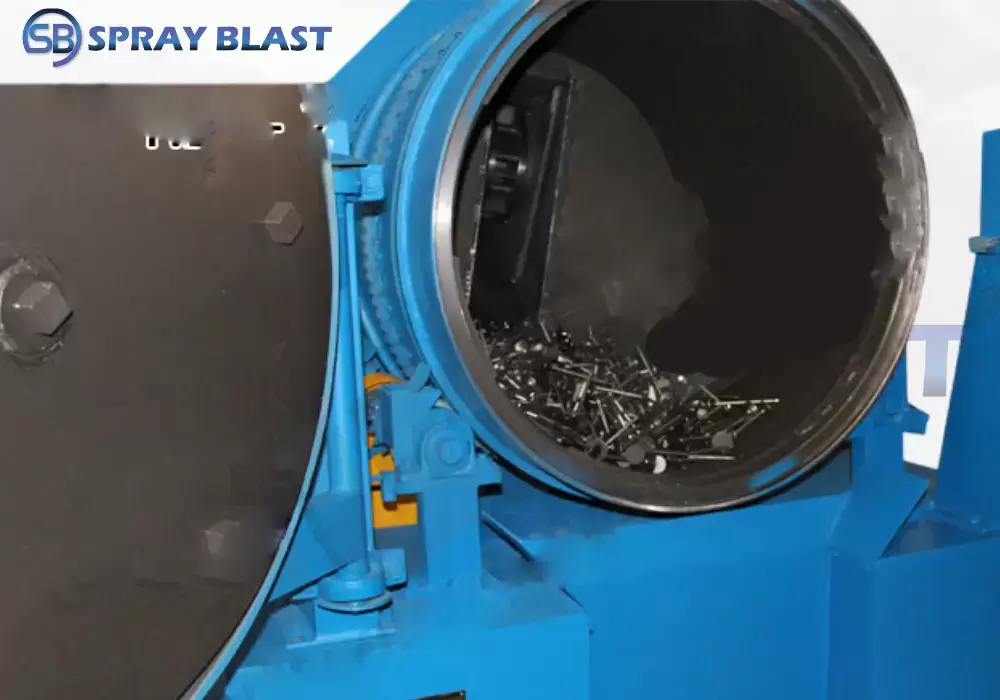

Rotary Barrel Shot Blasting Machine

Sepecification of Rotary Barrel Shot Blasting Machine

Applications of Rotary Barrel Shot Blasting Machine

The versatility of this machine makes it suitable for multiple industries:

• Foundries: Cleaning cast iron and aluminum castings.
• Automotive: Removing rust, paint, and scaling from gears, fasteners, and brake components.
• Forging Plants: Descaling forged parts after heat treatment.
• Metalworking Shops: Deburring and surface finishing of small metal parts.
• Aerospace: Preparing turbine blades and precision components.
• Railways: Cleaning small railway fasteners and couplings.
• General Manufacturing: Surface cleaning before coating, painting, or galvanizing.

Rotary Barrel Shot Blasting Machine Complete Guide

A rotary barrel shot blasting machine is one of the most widely used surface preparation machines in the manufacturing industry. It is specifically designed for cleaning, descaling, deburring, and surface finishing of small to medium-sized workpieces. With its unique rotating barrel design, this shot blasting machine ensures that every surface of the component is exposed to the abrasive stream, resulting in a uniform and high-quality finish.

This type of machine is highly efficient, cost-effective, and reliable, making it ideal for mass production industries where multiple small parts need to be cleaned simultaneously.

A rotary barrel shot blasting machine is an automatic surface treatment equipment where workpieces are placed inside a rotating barrel or drum. Abrasive media such as steel shots, grit, or other abrasives are blasted onto the components by blast wheels (turbines) at high velocity. As the barrel rotates, the parts continuously tumble over each other, ensuring even exposure to the abrasive stream.

This machine is primarily used for:

• Rust removal from metal components.
• Descaling of forged, cast, or heat-treated parts.
• Deburring sharp edges from machined components.
• Surface finishing before painting, coating, or galvanizing.
• Cleaning small castings, fasteners, gears, and automotive parts.

Working Principle of Rotary Barrel Shot Blasting Machine

The working principle is simple but effective:

• Loading: Components are loaded into the rotary barrel (manually or automatically).
• Rotation & Tumbling: The barrel starts rotating, causing parts to tumble over each other.
• Blasting Process: The blast wheels throw steel shots, abrasive media at high velocity inside the barrel.
• Continuous Cleaning: Due to the tumbling action, every surface of the workpiece is exposed.
• Media Recovery: Used abrasive is collected, separated from dust and broken shots, and reused.
• Unloading: Once the blasting cycle is completed, the cleaned parts are discharged.

Features of Rotary Barrel Shot Blasting Machine

• Barrel Rotation System: Provides continuous tumbling of parts.
• High-Efficiency Blast Wheels: Ensures consistent abrasive flow and uniform cleaning.
• Dust Collector: The dust collector removes dust and fine particles for a clean working environment.
• Abrasive Recycling System: Reuses media, reducing operational costs.
• Durable Manganese Steel Lining: Protects the machine body from abrasive wear.
• Automatic Loading & Unloading Options: For high-production industries.

Advantages of Rotary Barrel Shot Blasting Machine

• Uniform Cleaning: Continuous tumbling ensures 360° cleaning.
• Cost-Effective: Low operational cost due to abrasive recycling.
• Compact Design: Requires less space compared to other shot blasting machines.
• Automation Ready: Can be integrated with automatic loading/unloading systems.
• Durability: Strong wear-resistant design ensures long machine life.
• Versatility: Handles a wide range of small to medium-sized workpieces.

Comparison B/W Rotary Barrel Shot Blasting Machine & Tumblast Shot Blasting Machine

Both rotary barrel shot blasting machines and tumblast shot blasting machines are widely used for cleaning, descaling, deburring, and surface finishing of workpieces through a tumbling action combined with high-speed abrasive blasting. However, their design, capacity, and suitability for applications make them different from each other.

A rotary barrel shot blasting machine consists of a rotating drum or barrel where small and medium-sized workpieces are loaded. As the barrel rotates, the parts tumble over each other while abrasive shots are projected by shot blasting wheels at high velocity. This ensures uniform cleaning on all sides of the components. Rotary barrel machines are compact, economical, and best suited for small castings, forgings, fasteners, gears, and precision components. They are ideal for industries with moderate production requirements and limited floor space. However, they are not suitable for delicate or oversized parts, as the tumbling motion can cause damage or handling issues.

On the other hand, a tumblast shot blasting machine uses a conveyor belt made of rubber or steel to carry and tumble workpieces while abrasive media is blasted onto them. The tumbling is continuous, and the design allows for higher capacity cleaning compared to rotary barrel machines. Tumblast machines are preferred for medium to large-scale production industries, such as automotive, foundries, and heavy engineering plants, where large batches of castings, forgings, and fabricated components need to be cleaned efficiently. They offer higher throughput, better handling of heavier loads, and can process larger and more robust parts compared to rotary barrel machines.

Rotary Barrel Shot Blasting Machine Price

The rotary barrel shot blasting machine price depends on various factors such as capacity, automation grade, and blast wheel power. Our rotary barrel shot blasting machine price is low compared to other industries.

Spray Blast is the leading manufacturer and supplier of rotary barrel shot blasting machines in India and globally. We provide abrasive blasting machines, sand blasting machine, shot blasting machines, pipe shot blasting machines, stone shot blasting machines, tumblast shot blasting machine, roller conveyor shot blasting machines, abrasive media, dust collector, air compressor, and mineral powder. Indian manufacturers are known for offering cost-effective yet durable machines, making them highly competitive in the international market.
