Diabola Shot Blasting Machine

Diabola Shot Blasting Machine

The pipe is kept on the inward side of the Screw conveyor unit in the Steel Pipe Cleaning Diabola Shot Blasting Machine or pipe descaling equipment. The pipes are placed in the pipe blasting equipment's work chamber. The work chamber contains two bottom-mounted blast wheel stations that fire abrasive media from the revolving pipe's bottom side. While passing through the blast stream area, the pipes were shot blast cleaned appropriately. The pipes emerge from the pipe descaling equipment's output and must be manually removed.

In pipe descaling machinery, the conveyor velocity varies. One opening inlet and one outflow vestibule are provided on the steel pipe shot blasting machine. A curtain is provided to confine escaping abrasive projectiles based on the size of the Diabola Shot Blasting Machine and the amount of rubber available. The entire pipe blasting equipment is vented by a strong Pulse Jet type dust collector that is continuously running.

Abrablast's highly modern infrastructural facility is regularly upgraded in order to retain our market position. The facility, which is equipped with all of the essential machinery and equipment, aids in the achievement of several of the company's predetermined goals. The facility has been divided into numerous highly operational sections in order to handle the firm's operations with a high level of efficiency and effectiveness. Our large and reputable clientele is also due to our adherence to work ethics.

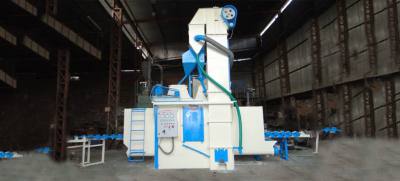

The Diabola Shot Blasting Machine is designed for inline cleaning of LPG cylinders' external surfaces. The Diabola Shot Blasting Machine is easy to use and maintain, with the operator merely loading and unloading the cylinders on rotating diabolic rollers. Steel shots are used to clean the blast chamber. Blasting is necessary on the external surfaces of metallic LPG cylinders to remove rust and corrosion and prepare the surface for thermal coating and painting.

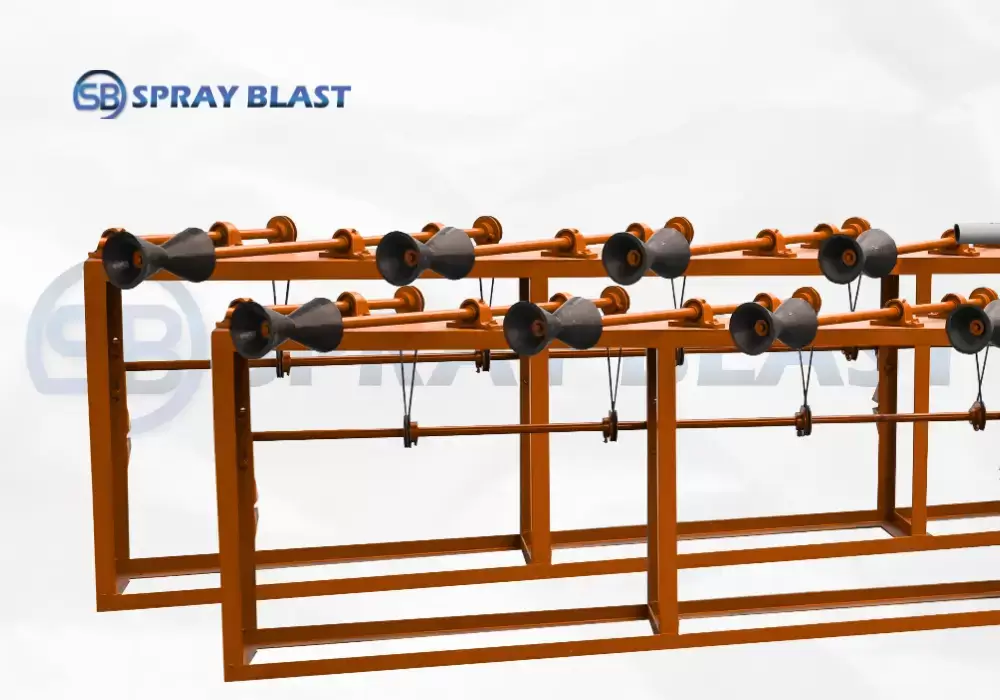

The diabolic roller arrangement, two high-speed blasting wheels, shot recovery and cleaning system, dry dust collection unit, and control panels are all included in the Diabola Shot Blasting Machine. The machine is designed to function continuously.

Specification of Diabola Shot Blasting Machine

Blast Wheel 1
Wheel Size 19.5 x 2.5
Shot Flow Rate (Ton/Wheel/hour) 8
Power Of Blast Wheel 12 Hp
Dust Collector Capacity 1000 CFM

Abrasive Flow

Approx. Shots flow rate 700 Kg /minute
Shot Velocity 70-80 Mtrs./Sec
Shots Consumption rate 0.13 kg/hp/ hr
Initial Charge of Shots 4000 Kg. (to be provided by purchaser)

Recovery System of Diabola Shot Blasting Machine

Drive For Bucket Elevator 15HP
Drive For Screw Conveyor (total) 7.5Hp
Skew Roller Conveyor Systems Up to 2mtr/min
Length of the conveyor (inlet) 10000 mm
Length of the conveyor (outlet) 13000 mm
Compressed Air requirement at 6 Kg/cm2 pressure 25 CFM AT 7 Kg./cm2
Dust collector System Vibratory Shaking type
The capacity of the dust collector 15000 CFM
Filter cloth area 316 sq mtr
No of bags 300 nos
Bag Type Fabric Bags
Gear Motor 04 nos
HP of geared motor 1.0 HP each
Bag Cleaning Vibratory Shaking type through the sequential timer
Noise Level 80-85 dB (A) at 3 Mtr. From Machine
Cleaning Standard SA 2.5-3
Job Movement Rotational with linear movement

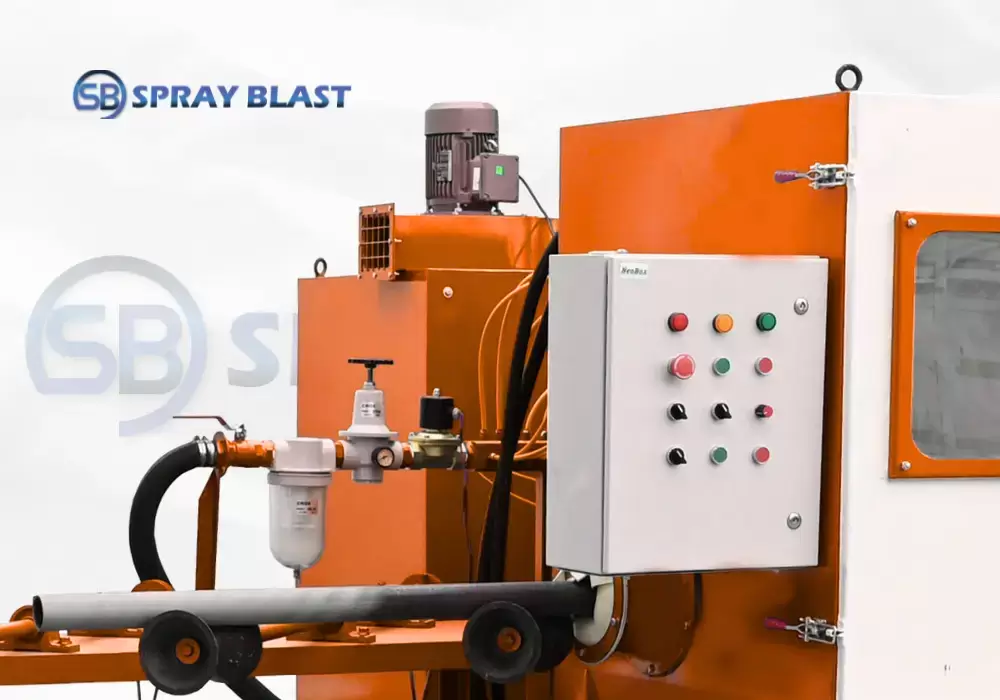

Control Panel Centralized Cubical type panel

Diabola Shot Blasting Machine Dimensions

Overall Dimension of pipe blasting machine Or pipe descaling equipment Length 28000mmWidth 8500mmHeight 6300mm(GL)
Floor Space required for Machine without Reverse Pulse Jet Type Dust Collector Length 28000mmWidth 9000mm
Pit Requirement of pipe descaling equipment Length 6000mmWidth 3500mmDepth 1300mm
Total Power Require 268.5 HP(200 kW)
Blast Wheel 100 HP x 2 200.0
Bucket Elevator 15 HP x 1 15.0
Upper Screw Conveyor 7.5 HP x1 7.5
Inlet Conveyor 1 HP x 3 3.0
Outlet Conveyor 1 HP x 3 3.0
Dust Collector 40 HP 40
