Sand Blasting Nozzle
| Nozzle Material | Tungsten, Boron Carbide, Silicon Nitride, Ceramic |
| Inner Diameter | 4-12 mm |
| Nozzle Length | 80-200 mm |
| Air Pressure Range | 5-8 bar (70-120 psi) |
| Air Consumption | 200-1500 L/min |

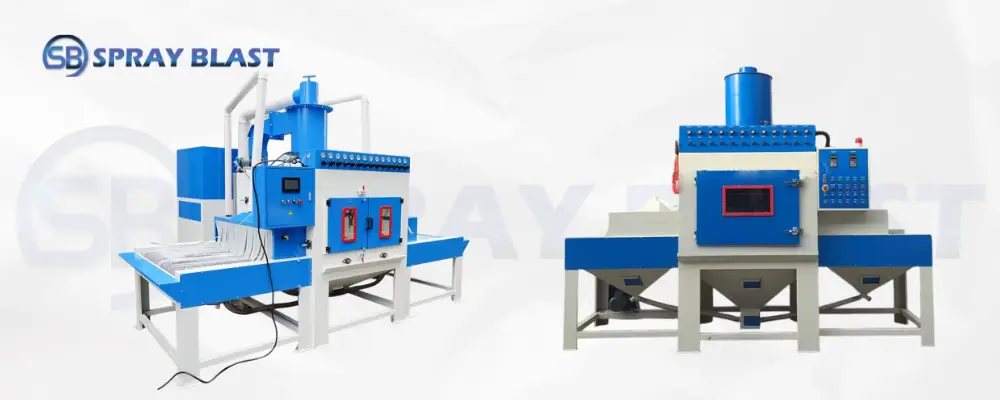

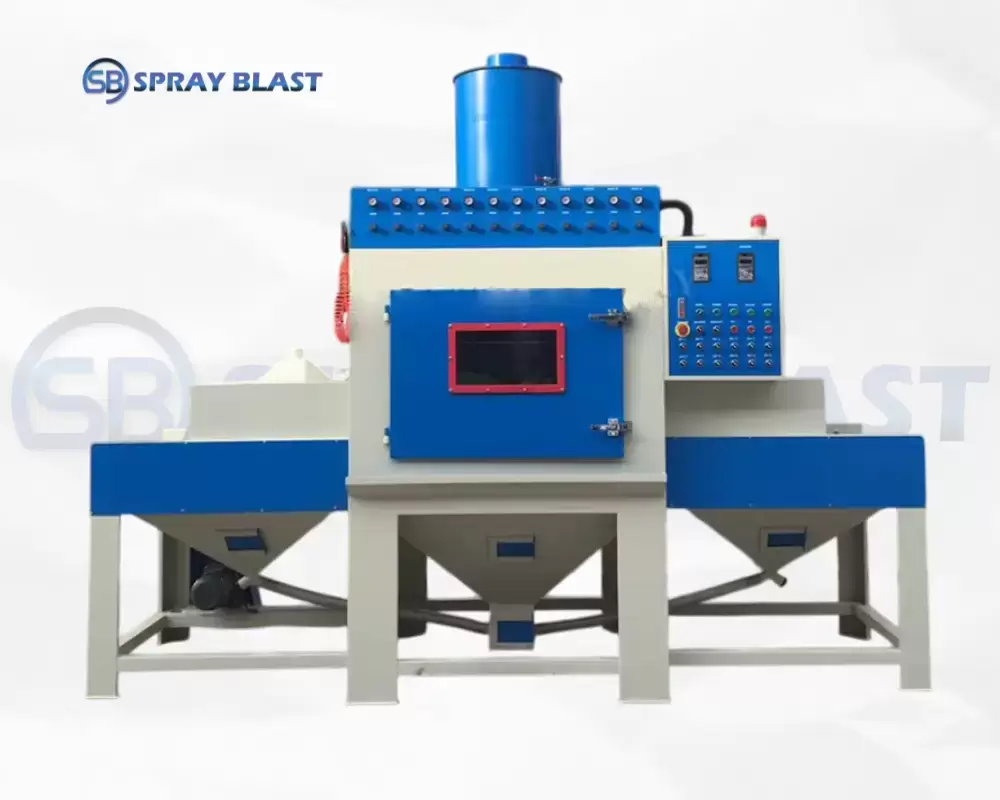

Automatic Sand Blasting Machine
.webp)
.webp)
Used Components of Automatic Sand Blasting Machine
Media Separator
| Type | Vibratory sieve |
| Separation Efficiency | ≥ 95% |
| Particle Size Removal | < 0.2-0.5 mm |
| Media Size Range | 0.2-3.0 mm |
| Air Flow Requirement | 1500-8000 m³/h |
Dust Collector
| Type | Cartridge, Bag Filter / Cyclone Separator |
| Filtration Efficiency | ≥ 99% @ 1-5 microns |
| Air Flow Capacity | 2000-10,000 m³/h |
| Filter Cleaning Method | Reverse Pulse Jet Cleaning |
| Noise Level | ≤ 80 dB |
| Material | Mild, Stainless Steel |
Sepecification of Automatic Sand Blasting Machine
| Grade | Automatic / Semi-Automatic |
| Blasting Method | Suction, Pressure or Wheel blasting |
| Working Chamber Size | Customizable |
| Blasting Nozzles | 1-12 Nozzles |
| Work Handling System | Rotary table, turntable, conveyor belt, or robotic arm |
| Media Size Range | 0.1-2.5 mm |
| Dust Collector | Cartridge / Bag filter type |
| Compressed Air Requirement | 70-120 psi |
| Power Supply | 220V, 50 Hz |
| Country | India |
| Brand | Spray Blast |
Applications of Automatic Sand Blasting Machine
- Rust and scale removal from metal surfaces
- Surface preparation before painting, galvanizing, or coating
- Cleaning molds and dies in foundries
- Deburring and edge finishing in the machining industries
- Peening to improve the fatigue strength of automotive and aerospace components
- Restoration of monuments, stone, and concrete structures
Automatic Sand Blasting Machine: Complete Guide
An automatic sand blasting machine uses a controlled stream of abrasive media to clean, smooth, or prepare surfaces for further processing, such as painting, coating, or plating. Unlike manual blasting, an automatic sand blasting machine provides precision, efficiency, and consistency, making it ideal for industries that demand high-quality surface finishing.
An automatic sand blasting machine is a specialized piece of surface preparation equipment designed to propel abrasive media against a workpiece under controlled conditions. The machine operates with minimal human intervention, using automated conveyors, rotary tables, or robotic arms to handle components.
By automating the blasting process, industries achieve:
- Higher productivity
- Reduced labor cost
- Consistent surface quality
- Safer working environments
These machines are used across automotive, aerospace, shipbuilding, foundries, fabrication, and construction industries.
.webp)
How Does an Automatic Sand Blasting Machine Work?
The working principle involves four major elements:
- Media Storage & Feeding: Abrasive material (sand, steel shot, aluminum oxide, glass beads, garnet, or grit) is stored in a hopper and delivered to the blasting system.
- Blasting Mechanism: The machine uses either a blast wheel (shot blasting) or compressed air with a sand blasting nozzle (sand/grit blasting) to accelerate the abrasive media.
- Surface Impact: High-speed abrasive strikes the surface, removing contaminants like rust, scale, old paint, and burrs, while also creating a rough profile for coating adhesion.
- Media Recovery & Separation: Reusable media is collected, cleaned through a media separator and dust collector, and cycled back for continuous operation.
Advantages of Using Automatic Sand Blasting Machines
- Consistency & Precision: Unlike manual blasting, automation ensures uniform cleaning and controlled roughness.
- High Productivity: Multiple components can be blasted simultaneously with rotary tables or conveyors.
- Cost Efficiency: Media recycling and reduced manpower lower operational costs.
- Versatility: Compatible with a wide range of abrasive media, including steel grit, copper slag, garnet, glass beads, and aluminum oxide.
- Enhanced Safety: Closed chambers and dust collectors minimize operator exposure to dust and rebounding abrasives.
- Eco-Friendly: Modern blasting machines include dust filtration and recycling systems, reducing environmental impact.
Key Components of an Automatic Sand Blasting Machine
- Blasting Nozzle: Accelerates abrasive media using compressed air.
- Blast Wheel (in shot blasting systems): High-speed wheel propelling shot or grit.
- Media Separator: Separates reusable abrasives from dust and broken particles.
- Dust Collector / Cartridge Filter: Maintains clean air quality and prevents pollution.
- Work Handling System: Conveyors, tumblers, or rotary tables for automatic part movement.
- Control Panel: Provides process monitoring, intensity control, and safety interlocks.
Automatic Sand Blasting vs. Manual Sand Blasting
Automatic sand blasting machines offer precision, consistency, and high productivity by automating the surface preparation process with controlled abrasive flow, enclosed chambers, and media recycling systems. They are ideal for industries requiring uniform results and large-scale production. In contrast, manual sand blasting machine rely heavily on operator skill, making the process slower, less consistent, and more labor-intensive. While manual systems have lower upfront costs and are suitable for small jobs, maintenance, and repair work, automatic machines provide safer operation, reduced long-term costs, and superior surface finish for demanding industrial applications.
| Aspect | Manual Sand Blasting | Automatic Sand Blasting Machine |
| Consistency | Operator dependent | Uniform and repeatable |
| Speed | Slow, limited throughput | High productivity |
| Safety | Risk of exposure to dust | Enclosed, safer for operators |
| Applications | Small-scale, repair jobs | Industrial production and precision work |
Automatic Sand Blasting Machine Price
An automatic sand blasting machine price depends on several factors, such as machine type (sand blasting cabinet, wheel blast, or robotic), production capacity, level of automation, and additional features like dust collectors, media separators, and PLC controls. Entry-level automatic cabinets designed for small to medium components are more affordable, while heavy-duty wheel blast machines or fully robotic sand blasting systems can be significantly more expensive due to their advanced technology and higher throughput. Although the initial investment for an automatic sand blasting machine is higher compared to manual units, it delivers long-term benefits in terms of reduced labor costs, consistent quality, efficient media recycling, and safer operation, making it a cost-effective choice for industries requiring precision and mass production. Our automatic sand blasting machine price is low compared to other industries.
Automatic Sand Blasting Machine in India
Spray Blast is a leading provider of surface preparation and finishing equipment, specializing in automatic sand blasting machines, sand blasting machines, shot blasting machines, grit blasting machines, dry ice blasting machines, hydro blasting machines, laser rust cleaning machines, granite engraving machines, thermal spray guns, metal spray guns, thermal spray booth, and abrasive media. With years of expertise in the blasting industry, we design and manufacture a wide range of automatic, semi-automatic, and portable blasting machines that meet international quality standards.
Our product line includes sand blasting cabinets, automatic shot blasting machines, portable sand blasting machines, blasting nozzles, dust collectors, and media recovery systems, catering to diverse industries such as automotive, aerospace, construction, shipbuilding, oil & gas, and foundries.
