High Pressure Pump
| Type | Triplex, Quintuplex Plunger Pump |
| Pressure Range | 5,000-40,000 PSI |
| Flow Rate | 5-100 LPM |
| Inlet Pressure | 2-6 bar |
| Power Source | 20-200 HP |
| Pump Head Material | stainless/Alloy steel |

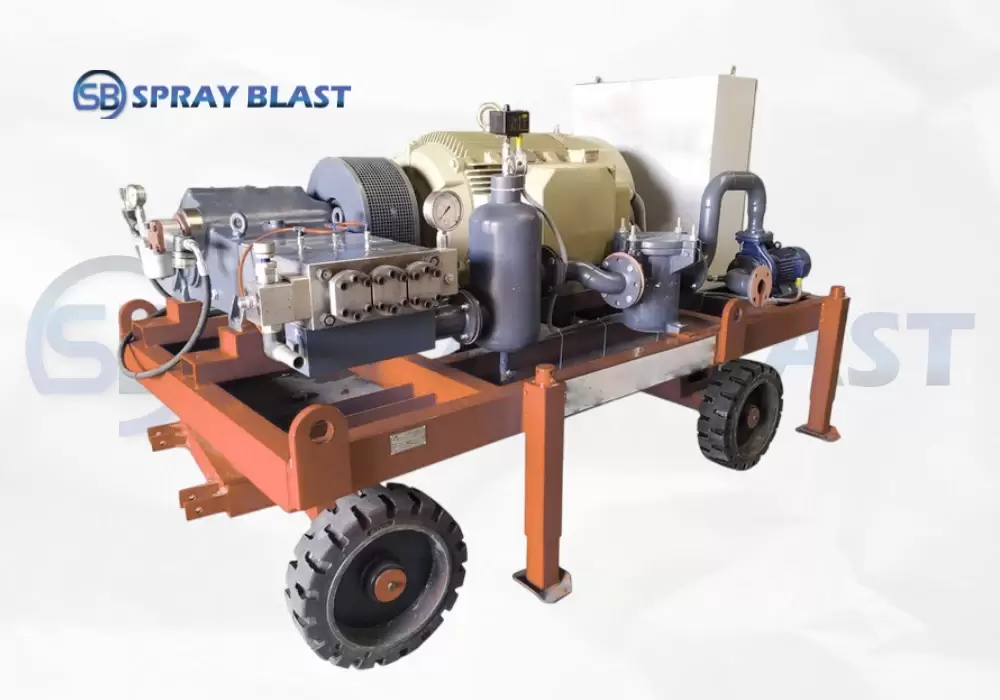

Hydro Blasting Machine
Used Components of Hydro Blasting Machine
Pressure Control Valve
| Type | Pressure Relief / Pressure Regulating Valve |
| Pressure Range | 5,000 – 40,000 PSI |
| Size Options | ¼”-1” |
| Flow Capacity | 5-100 LPM |
| Temperature Range | -20°C to +100°C |
Blasting Nozzle For Hydro Blasting Machine
| Type | Straight Bore, Venturi, Rotating Nozzles |
| Pressure Range | 5,000-40,000 PSI |
| Orifice Diameter | 0.4-2.0 mm |
| Flow Rate | 5-50 LPM |
| Temperature Resistance | Up to 100°C |
Sepecification of Hydro Blasting Machine
| Pressure Range | 5,000-40,000+ PSI |
| Flow Rate | 10-100 liters/minute |
| Hose Length | 10-50 meters |
| Power Source | Electric motor |
| Applications | Cleaning & surface prep |
| Country | India |
| Brand | Spray Blast |
Applications of Hydro Blasting Machine
- Removal of grease, oil, and industrial contaminants from machinery.
- Cleaning turbines, compressors, and heat exchangers in power plants.
- Removing old paint, rust, and corrosion from steel and metal structures.
- Preparing concrete and metal surfaces for recoating or painting.
- Cleaning ship hulls, propellers, and marine platforms.
- Removing barnacles, algae, and marine growth without damaging the base surface.
- Cleaning pipelines, storage tanks, and refinery equipment.
- Removing scale, deposits, and coatings from drilling platforms and offshore rigs.
- Cutting and removing damaged concrete.
- Cleaning formworks, scaffolding, and construction equipment.
- Cleaning process tanks, vats, and production lines without chemicals.
- Maintaining hygiene in food-grade facilities.
- Removing paint, grease, and debris from vehicles and railway components.
- Cleaning engine parts, gearboxes, and chassis.
Introduction to Hydro Blasting Machine
A hydro blasting machine, also known as a high-pressure water jet cleaning machine, is an advanced cleaning equipment that uses extremely high-pressure water to remove dirt, scale, paint, rust, and other surface contaminants. This cleaning process is completely chemical-free, eco-friendly, and highly effective for industrial maintenance, surface preparation, and specialized cleaning applications.
Hydro blasting is considered one of the safest and most efficient cleaning methods for industrial equipment, pipelines, heat exchangers, tanks, ship hulls, and concrete surfaces. It can operate at pressures ranging from 5,000 PSI to over 40,000 PSI, depending on the cleaning requirement.
How a Hydro Blasting Machine Works
A hydro blasting machine works by pumping water at extremely high pressures through a specialized sand blasting nozzle. The kinetic energy of the water stream impacts the surface, removing unwanted layers without damaging the base material.
Components of Hydro Blasting Machine
- High-pressure Pump: Generates the required water pressure.
- Blasting Nozzles: Designed for specific cleaning patterns (fan jet, rotary, pencil jet).
- Hoses & fittings: High-strength, abrasion-resistant sand blasting hoses to handle extreme pressures.
- Control Unit: Allows adjustment of water pressure for different applications.
- Safety System: Includes pressure relief valves and operator safety controls.
Types of Hydro Blasting Machines
Low-Pressure Hydro Blasting Machines: Low-pressure hydro blasting machines operate in the range of 5,000 to 10,000 PSI and are primarily used for light cleaning and surface washing. They are perfect for removing loose dirt, mud, algae, or soft coatings from surfaces without causing damage to the base material.
Medium-Pressure Hydro Blasting Machines: Medium-pressure hydro blasting machines operate between 10,000 and 20,000 PSI. These are ideal for surface preparation, paint removal, and rust removal in industrial environments. The water jet is strong enough to strip coatings, scale, and rust, but still safe for use on most industrial metals and concrete surfaces.
Ultra-High-Pressure Hydro Blasting Machines: Ultra-high-pressure (UHP) hydro blasting machines operate at 20,000 PSI and above, with some models exceeding 40,000 PSI. These machines deliver extreme cleaning power for heavy-duty industrial applications where deep removal of concrete, thick coatings, or marine growth is required.
Advantages of Hydro Blasting Machine
- Eco-Friendly: Uses only water, no harmful chemicals.
- Non-Abrasive: Does not damage the surface being cleaned.
- Highly Effective: Removes stubborn deposits quickly and efficiently.
- Dust-Free Cleaning: No airborne dust compared to sand blasting.
- Versatile: Suitable for multiple industries and surfaces.
- Safe for Operators: Machines come with advanced safety controls.
Why Choose Hydro Blasting Over Sand Blasting?
- Hydro blasting is dust-free, while sand blasting produces airborne dust.
- No abrasive media disposal is required in hydro blasting.
- Hydro blasting is safer for delicate and coated surfaces.
- Sand blasting is more aggressive but may cause surface damage.
Hydro Blasting Machine Price in India
The hydro blasting machine price in India depends on several key factors, including the pressure rating (low, medium, or ultra-high pressure), flow rate, and overall capacity of the machine. The type of pump, whether it is electric or diesel-driven, also influences the cost. Additional factors such as the quality of materials used in construction, the type of nozzles provided, safety features, hose length, and mounting style (skid, trolley, or trailer) can further impact the price. Customization options for specific industrial applications, along with the brand reputation and after-sales service, also play an important role in determining the final cost.
We are the leading hydro blasting machine manufacturer in India and supplier of hydro blasting equipment worldwide. Spray Blast also provides all types of sand blasting machines, vacuum blasting machines, stone shot blasting machines, grit blasting machines, sand blasting cabinets, sand blasting rooms, wet blasting machines, wheel blasting machines, airless blasting machines, laser rust cleaning machines, thermal spray guns, flame spray gun, arc spray gun, thermal spray booth, abrasive media etc.
